Intrepid HD

Intrepid HD

Intrepid HD series is built on a rigid 2×6 main frame. Floor cross members, tubular wall posts, and roof members are all 16” on center. Other standard features include 7’ interior height, .080 PolyCor siding, 5,200lb drop brake axles, 32” side entry door, rear ramp door with extension flap, rear loading and porch lights, and a 60” tongue with adjustable 2&5/16” coupler.

STANDARD FEATURES INCLUDE:

  • .080 PolyCor Exterior Siding
  • 16" O.C. Full Height Crossmembers
  • 2 Interior Lights with Switch
  • 2' V-Nose w/ ATP Point
  • 24" Aluminum Treadplate Stoneguard
  • 2x6 Tube Steel Frame
  • 3 Year Limited Structural Warranty
  • 3/4" Exterior Grade Plywood Flooring
  • 3/8" Plywood Interior Wall Liner
  • 32" Side Door
  • 4 Wheel Brakes
  • 4-5000# D-Ring Tie Downs
  • 5000 lb Tongue Jack-Tandem Models
  • 5200 lb. Spring Braking EZ Lube Drop Axles
  • 60" Tongue w/ADJ 2 5/16" Coupler
  • 7' High Sidewalls on All Models
  • 7-way Molded Light Plug
  • Aerodynamic Styling
  • Aluminum Door Holdbacks
  • Aluminum Fenders
  • Automotive Quality Gaskets & Seals
  • Beavertail (8.5' wides only)
  • Breakaway Kit with Battery and Charger
  • Door Grab Handles
  • Door Hold Back Chains
  • Fender Lights (Excluding 8.5' Wide Models)
  • Floor Crossmembers 16" O.C.
  • Flow thru Vent System
  • LED Compliant Lighting
  • Modular Style Steel Wheels
  • NATM Certified
  • One Piece Aluminum Roof
  • Ramp Door Extension Flap
  • Rear Loading Light and Porch Light
  • Rear Ramp Door w/ Spring Cable Assist
  • Semi-Trailer Style Door Fastener Bars with Zinc-Coated Finish
  • Trailer Rated Radial Tires
  • Tubular Steel Roof Supports 16" O.C.
  • Tubular Steel Wall Studs 16" O.C.
  • Under Coated Frame
Popular Options
  • 110V Electrical Options
  • 78" Wide Rear Opening (7' Wide Models)
  • 94" Opening (8.5' Wide Models)
  • Air Conditioner
  • Aluminum Wheels
  • Available in Five Colors
  • Axle Upgrades
  • Blacked Out Exterior
  • Bonded Side Door
  • Concession Doors
  • D-Ring Tie Downs
  • E-Track
  • Extra Sidewall Height
  • Insulated Ceiling (Liner Required)
  • Insulated Walls
  • Ladder Racks
  • LED Ceiling Light
  • PolyCor Ceiling Liner
  • PolyCor Wall Liner
  • Ramp Transition Plate
  • Rear Spoiler w/ Loading Light
  • Rear Stabilizer Jacks
  • Roof Access Ladder
  • Roof Vents
  • Side Ramp Door
  • Slant Two tone
  • Spare Tire and Wheel
  • Spare Tire Compartment
  • Spread Axle (8.5' Wide Models)
  • Walk on Roof

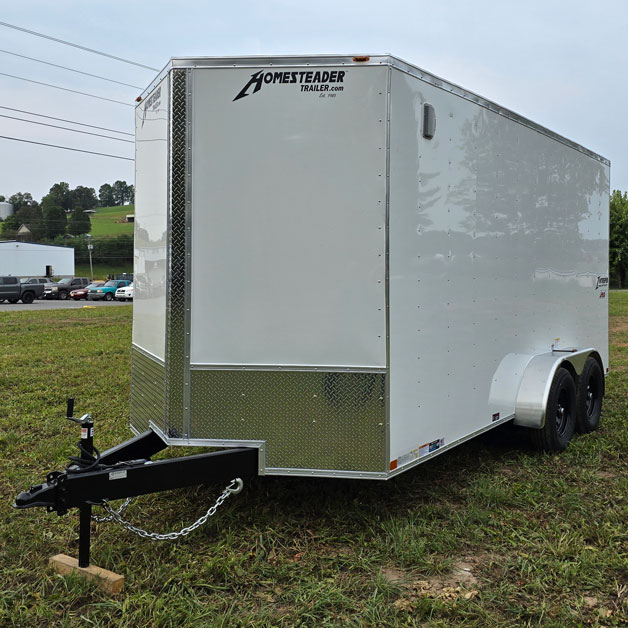

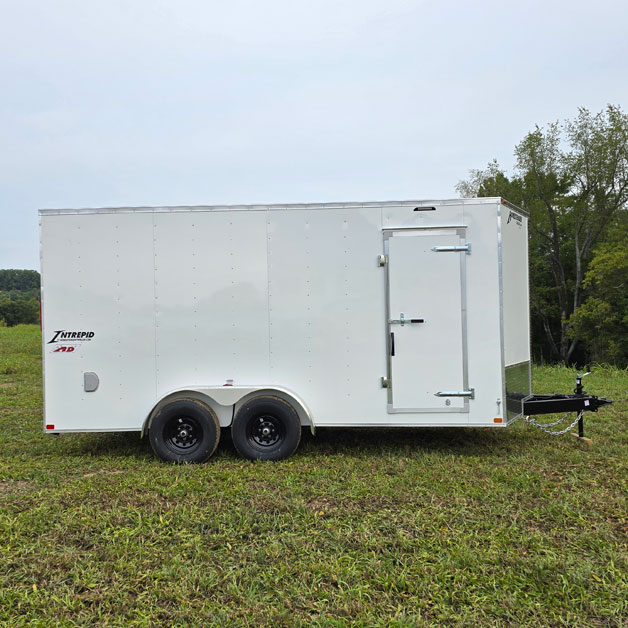

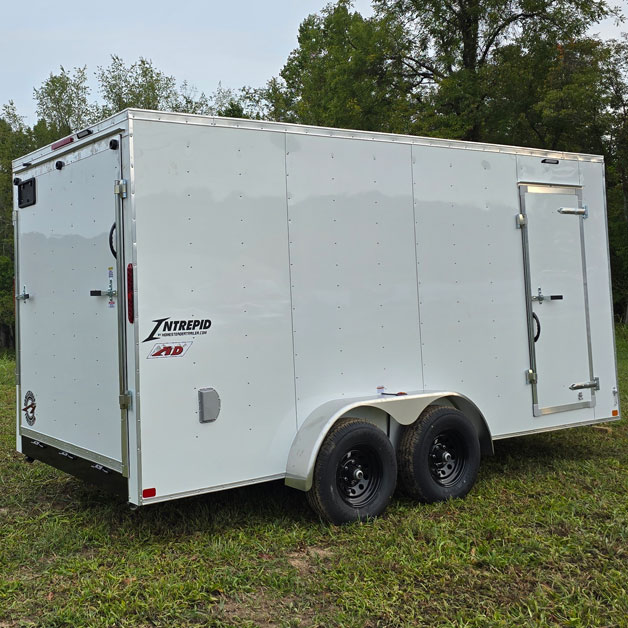

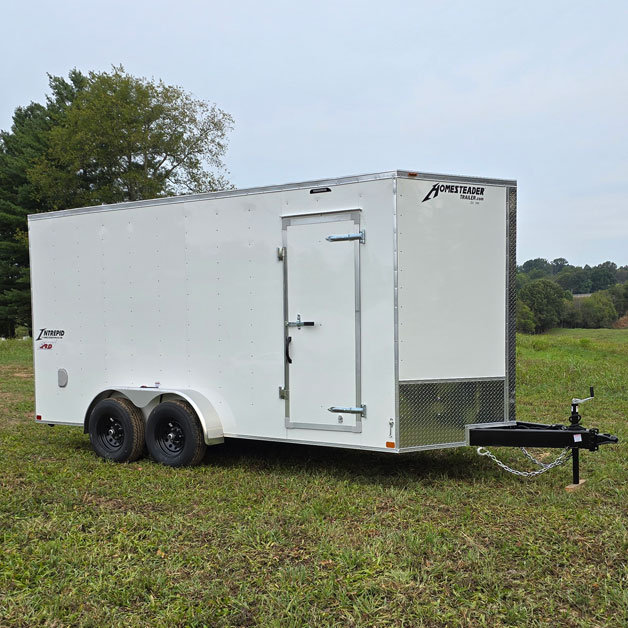

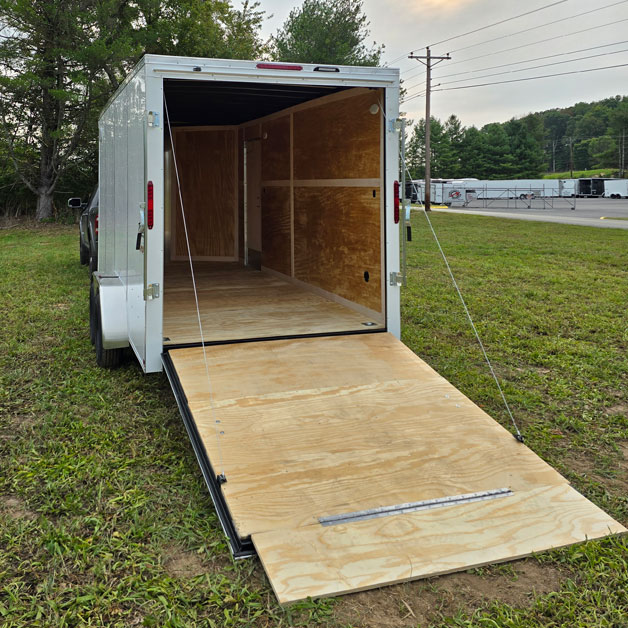

Intrepid HD 716IH
Length: 20'10"    Height: 9'
Intrepid HD - 716IH
Intrepid HD - 716IH
Intrepid HD - 716IH
Intrepid HD - 716IH
Intrepid HD - 716IH
Print

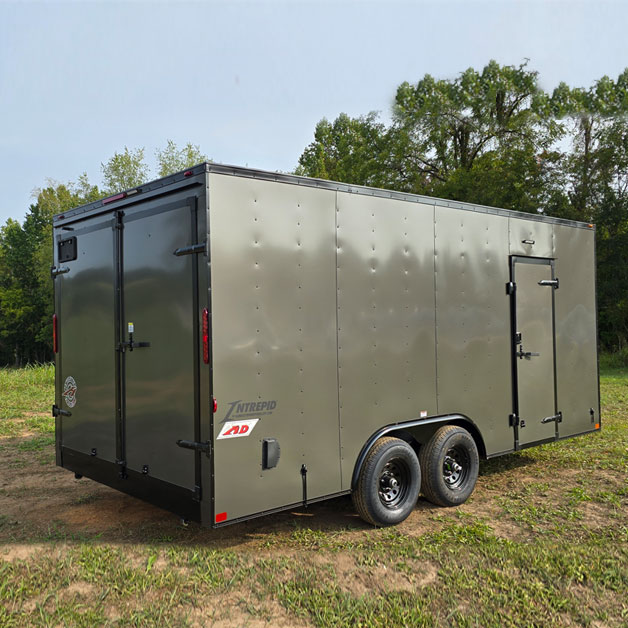

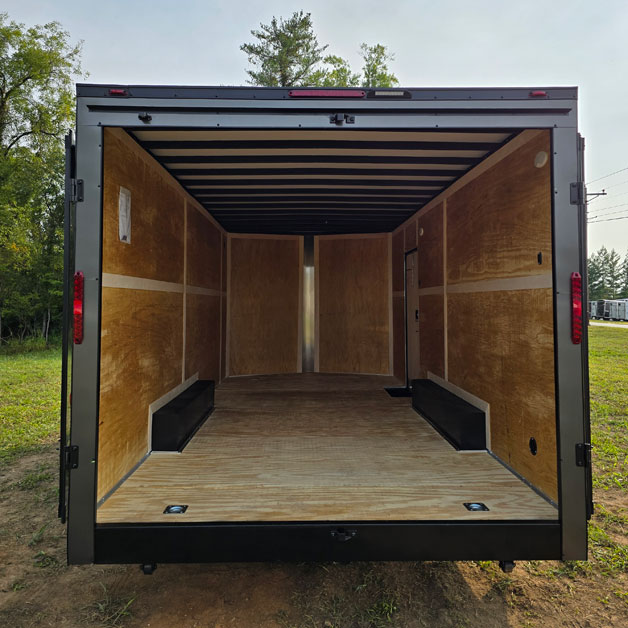

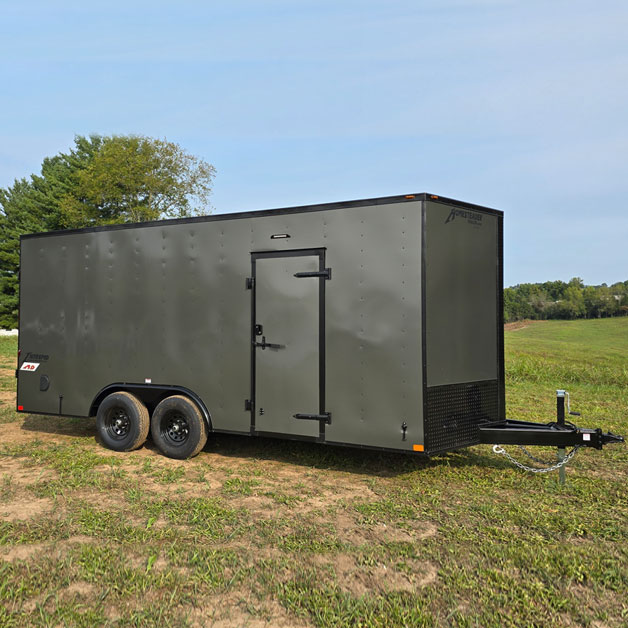

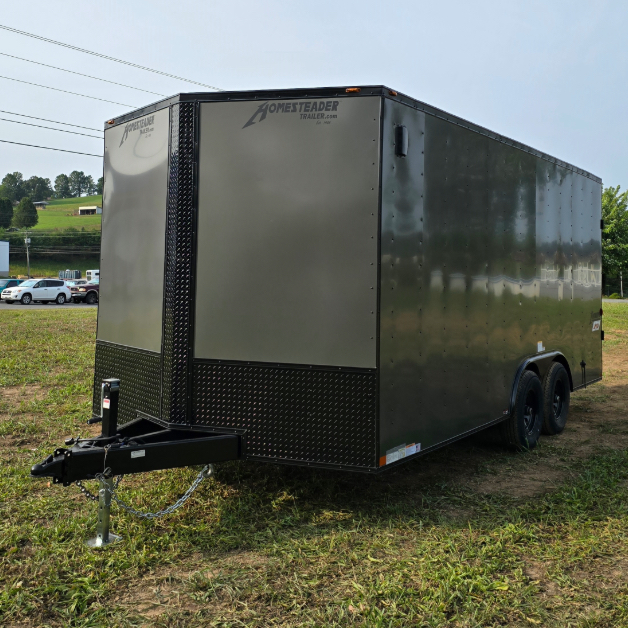

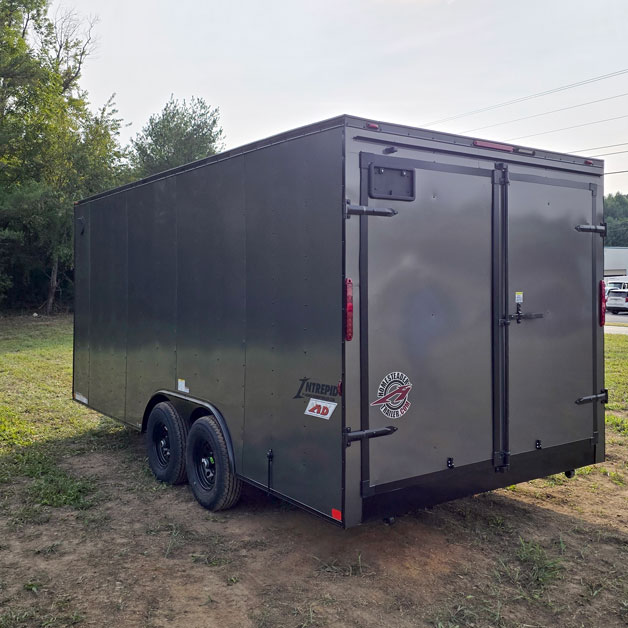

Intrepid HD 818IH
Length: 22'6"    Height: 9'
Intrepid HD - 818IH
Intrepid HD - 818IH
Intrepid HD - 818IH
Intrepid HD - 818IH
Intrepid HD - 818IH
Print

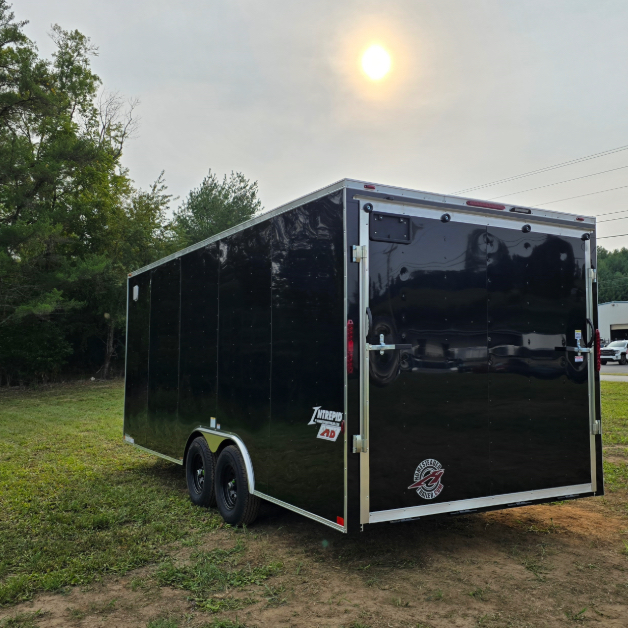

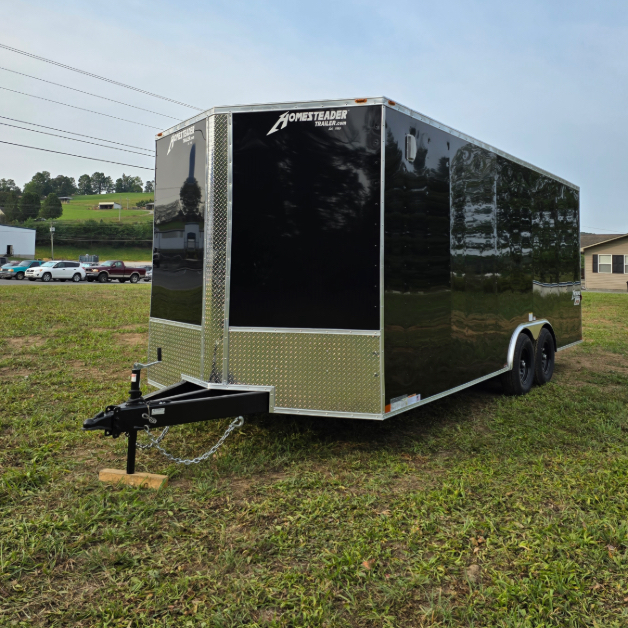

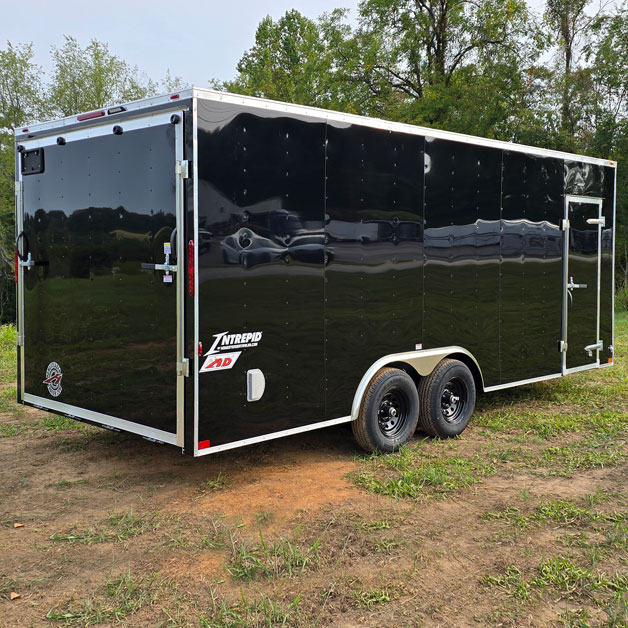

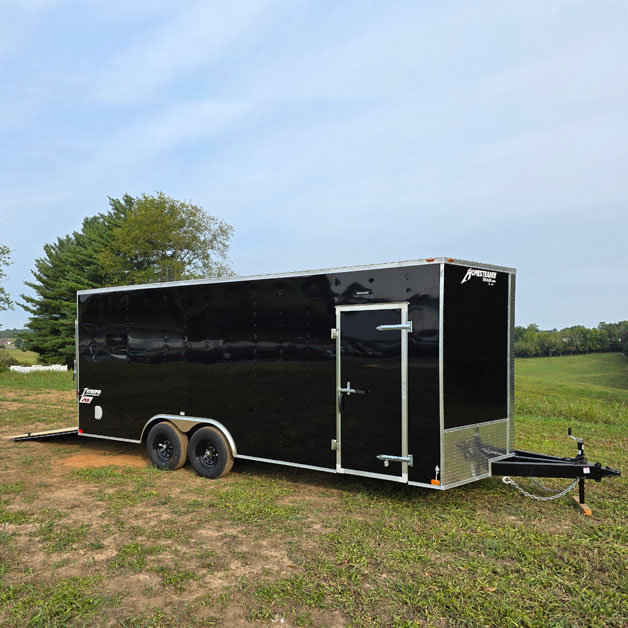

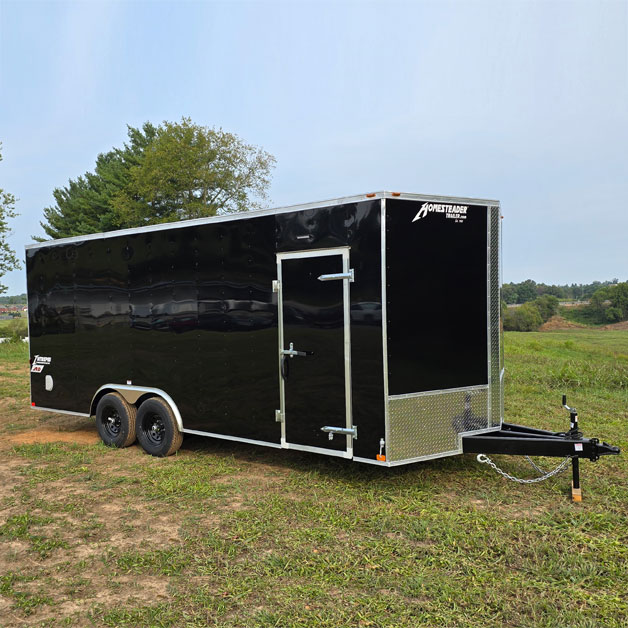

Intrepid HD 820IH
Length: 24'6"    Height: 9'
Intrepid HD - 820IH
Intrepid HD - 820IH
Intrepid HD - 820IH
Intrepid HD - 820IH
Intrepid HD - 820IH
Print

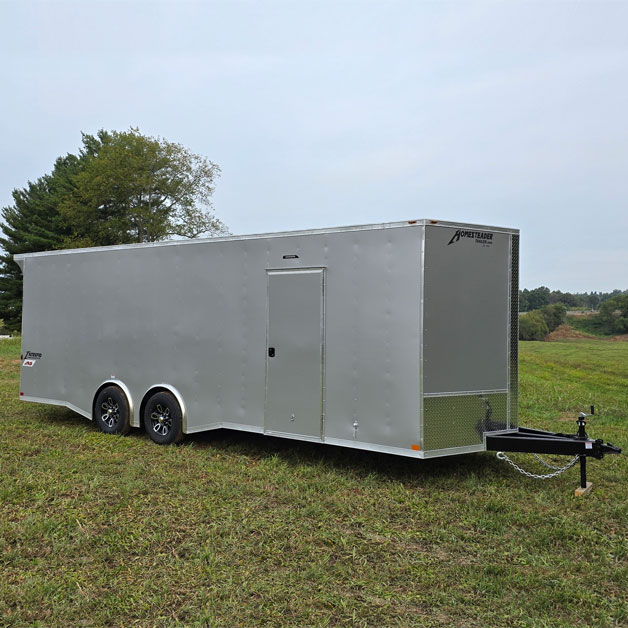

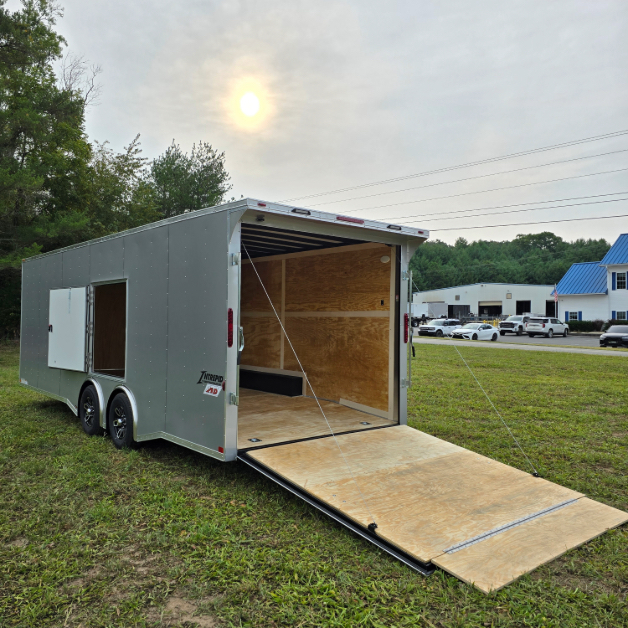

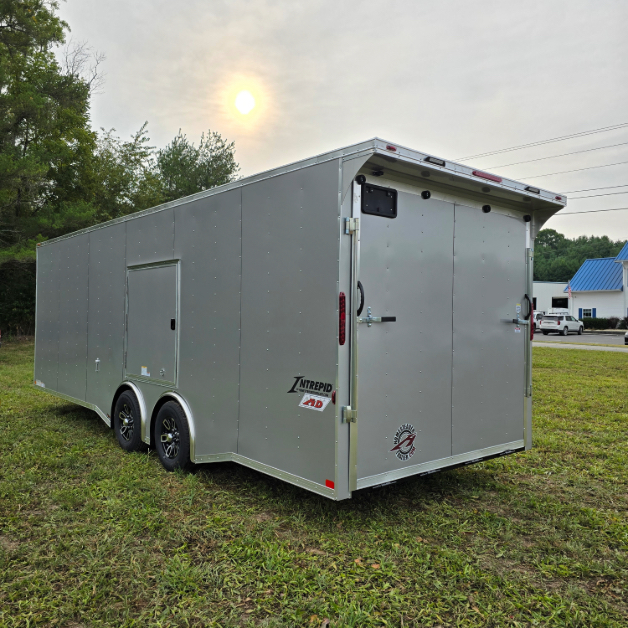

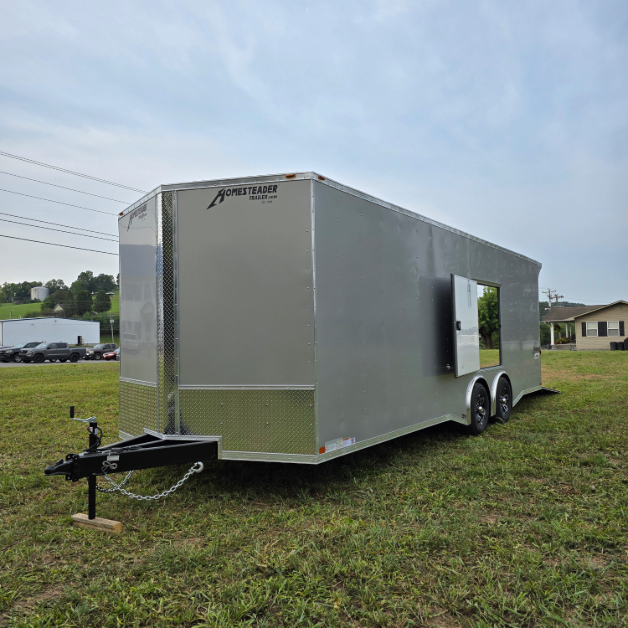

Intrepid HD 824IH
Length: 28'6"    Height: 9'
Intrepid HD - 824IH
Intrepid HD - 824IH
Intrepid HD - 824IH
Intrepid HD - 824IH
Print

Available Intrepid HD Trailer Models

[ print chart]
Intrepid HD Models
Overall Length
Overall Height
Overall Width
Interior Length
Interior Height
Interior Width
Door Open Height
Door Open Width
GVWR
Curb Weight
Payload
712IH

Intrepid HD 712IH (click to print )

16'10"
9'
102"
13'6"
7'
6'8"
80"
74"
9950
2680
7270
714IH

Intrepid HD 714IH (click to print )

18'10"
9'
102"
15'6"
7'
6'8"
80"
74"
9950
2840
7110
716IH

Intrepid HD 716IH (click to print )

20'10"
9'
102"
17'6"
7'
6'8"
80"
74"
9950
3000
6950
718IH

Intrepid HD 718IH (click to print )

22'10"
9'
102"
19'6"
7'
6'8"
80"
74"
9950
3160
6790
720IH

Intrepid HD 720IH (click to print )

24'10"
9'
102"
21'6"
7'
6'8"
80"
74"
9950
3320
6630
816IH

Intrepid HD 816IH (click to print )

20'6"
9'
102"
17'6"
7'
8'
81"
90"
9950
3360
6590
818IH

Intrepid HD 818IH (click to print )

22'6"
9'
102"
19'6"
7'
8'
81"
90"
9950
3580
6370
820IH

Intrepid HD 820IH (click to print )

24'6"
9'
102"
21'6"
7'
8'
81"
90"
9950
3800
6150
822IH

Intrepid HD 822IH (click to print )

26'6"
9'
102"
23'6"
7'
8'
81"
90"
9950
4020
5930
824IH

Intrepid HD 824IH (click to print )

28'6"
9'
102"
25'6"
7'
8'
81"
90"
9950
4240
5710
826IH

Intrepid HD 826IH (click to print )

30'6"
9'
102"
27'6"
7'
8'
81"
90"
9950
4500
5450
828IH

Intrepid HD 828IH (click to print )

32'6"
9'
102"
29'6"
7'
8'
81"
90"
9950
4760
5190
830IH

Intrepid HD 830IH (click to print )

34'6"
9'
102"
31'6"
7'
8'
81"
90"
9950
5020
4930
832IH

Intrepid HD 832IH (click to print )

36'6"
9'
102"
33'6"
7'
8'
81"
90"
9950
5280
4670
* All weights and dimensions are approximate and will change with additional equipment.

** Occasionally it may become necessary to produce Homesteader products with different components or processes than initially specified. All such changes are approved for use by Homesteader in order to maintain the quality standards associated with the Homesteader name. All illustrations and specifications contained in this web site are based on the latest product information at time of publication. We assume no responsibility for any error in type or print reproduction of specifications in the web site. Homesteader reserves the right to make changes in price, colors, materials, equipment, specifications, and processes and to discontinue models or options at any time without notice.

For more information or to purchase a trailer visit your nearest authorized Homesteader Dealer.
